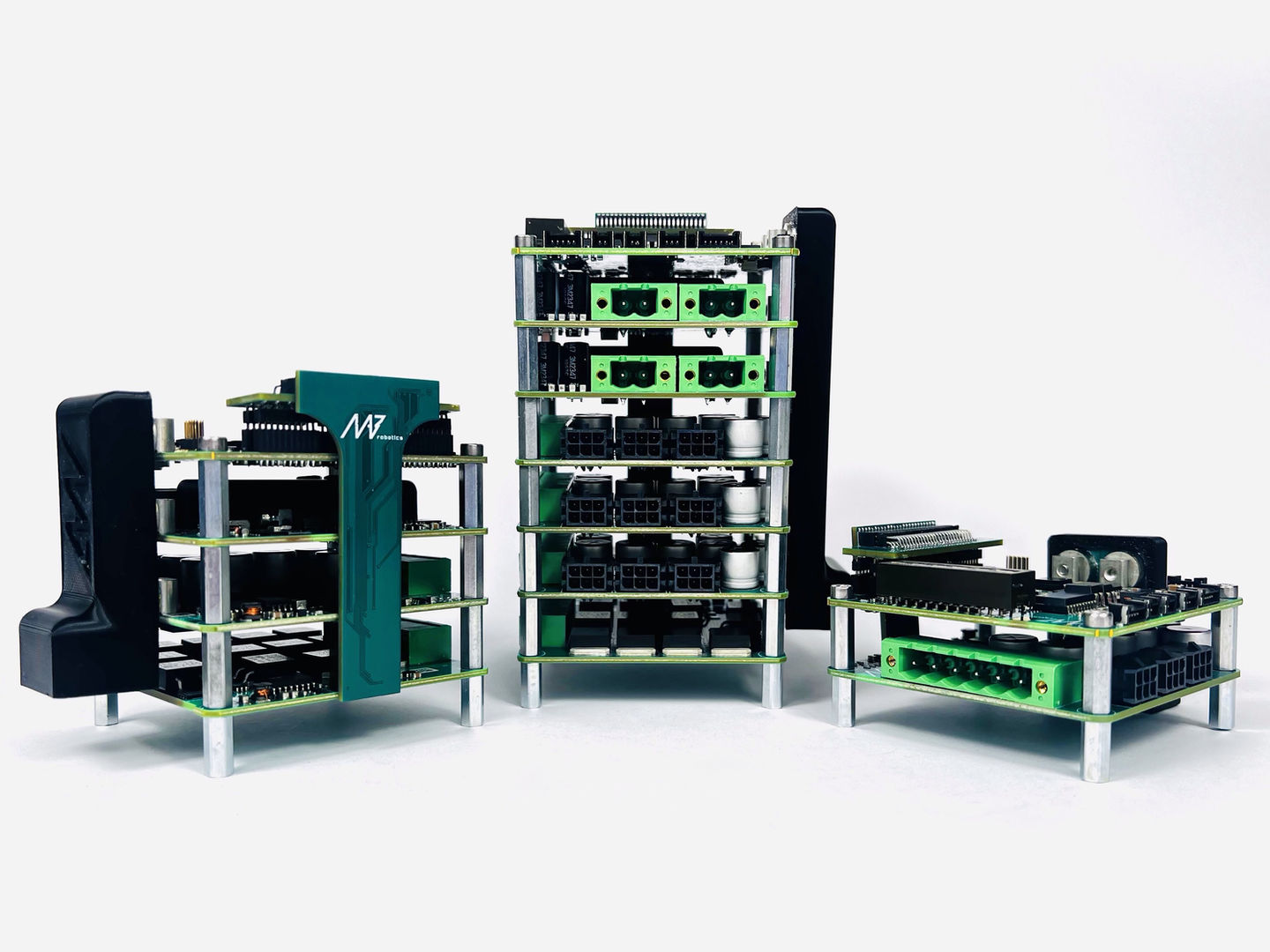

PDS - MAB Robotics Power Distribution System is a device dedicated to mobile robotics, that allows for managing the distribution of power between components. CANdle ecosystem compatibility provides support for other MAB product series, and stackable, modular architecture makes it easy to scale and customize your projects. The PDS accurately monitors the current, voltage, and temperature of connected devices and the RGB power button helps you to recognize whether the board is on or off.
• Supply voltage 12-48 VDC
• CAN-FD interface with CANdle ecosystem support
• Configurable STO/Kill switch inputs
• Reverse polarity protection• Inrush current limitation
• Braking resistors and isolated DC/DC converters
• Galvanic isolation between control and power modules
• Current, voltage, and temperature monitoring
• Customizable power bus current: 50 A per one Power Stage
• RGB button to turn on and off the board
• Stackable, modular architecture
• The quiescent current in shutdown: below 20 μA
• Setup includes: chosen PDS modules + a set of wires
In the product configurator please choose the number of modules:
PS - Power Stage
IC - Isolated Converter
BR - Braking Resistor
The product is available as a preorder, the estimated shipping date is 01.2025.
The documentation is available upon contact.
