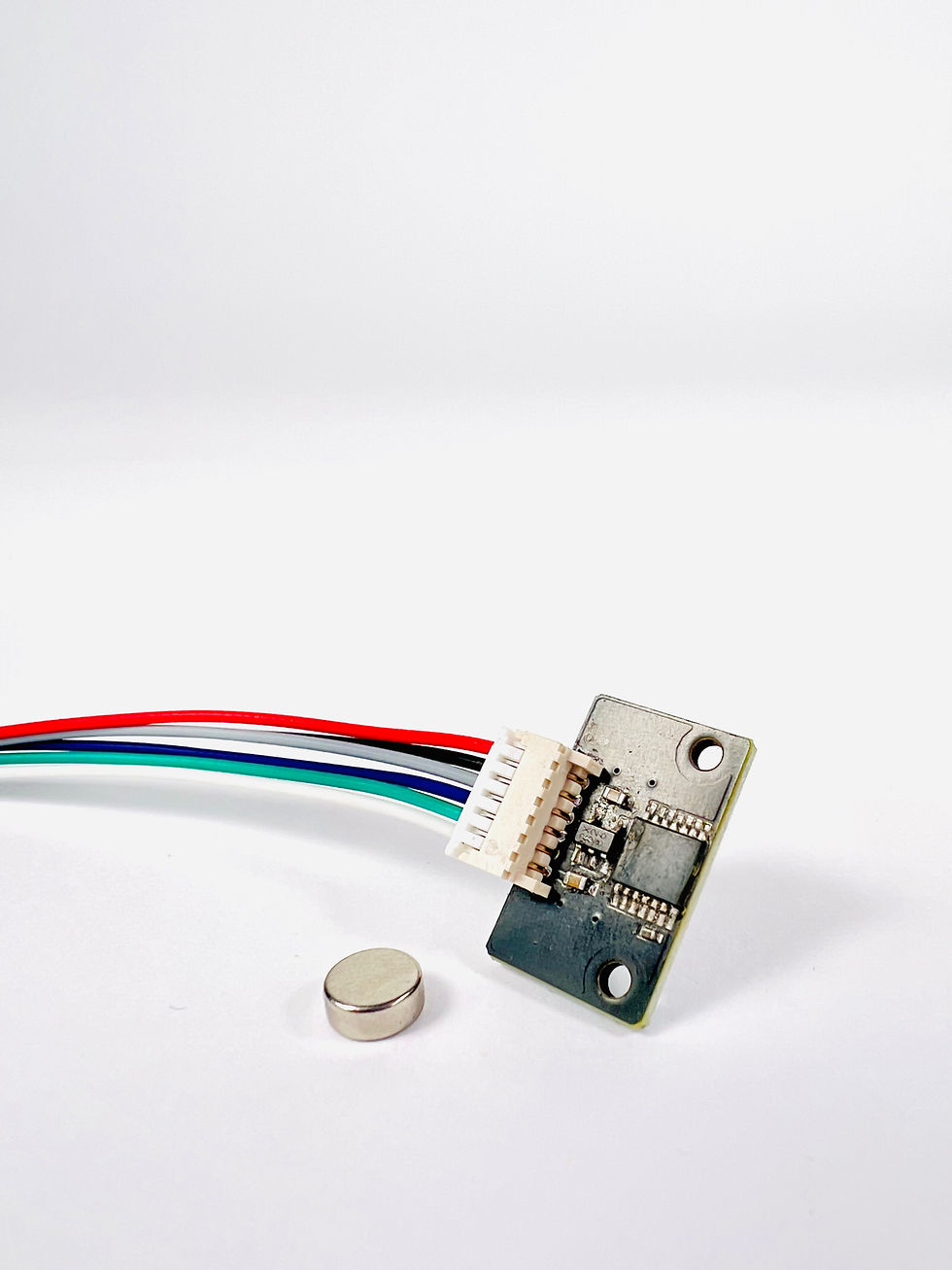

ME-am Absolute Output Encoder
The MAB ME Series absolute output encoder is an extension module designed specifically for MD Series controllers. It supports both on-axis and off-axis configurations. In the on-axis setup, the encoder can function as the main motor encoder or be placed on the output shaft to track its position. The off-axis configuration is particularly useful for determining the position of the output shaft in geared actuators after startup.
Size
19 x 12 x 6 mm
Resolution
14bit
Accuracy
On-axis: ~ 0.1°
Off-axis: ~ 1°
Configurations
On-axis or off-axis
Magnet included
ON-AXIS CONFIGURATION
On-axis solution where we use a diametrically magnetized barrel magnet is perfect for robotic actuators.
Usually, mounted directly on the axis of rotation, for example on the electric motor shaft.
Simple mechanical design.
Used in scenarios required precision.
OFF-AXIS CONFIGURATION
Off-axis solution where we use a ring magnet is designed to determine the absolute position of a output shaft of a geared actuator after startup or position measurements in hollow-shaft systems.
-
Good for applications with limited axial space or complex mechanical layouts.
-
Cost-effective solution.
