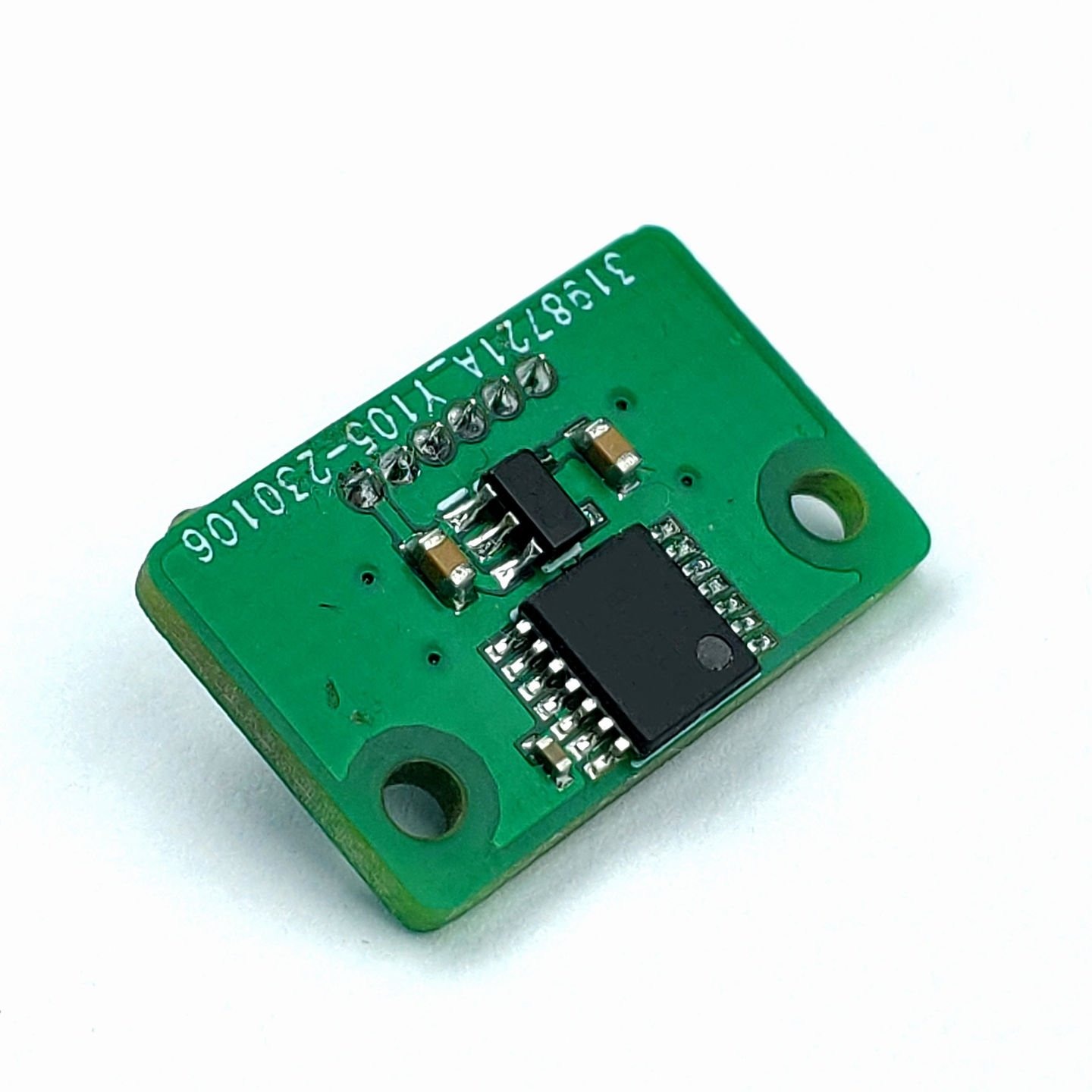

The ME absolute encoder is an extension module to the MD series controllers. It is used for precise position determination on geared motors (post-startup), direct output shaft control, or reporting position and velocity values. It functions effectively in both center and off-axis configurations. The MAB Robotics absolute output encoder offers a cost-effective, compact solution that is easy to integrate into any mobile robotics application.

• Dimensions: 19x12x6 mm
• Resolution: 14 bit

• True absolute measurements

• Accuracy: 0.3° for axial configuration, >1.0° for off-axis configuration
• Operation modes: Startup, Motion, Report, Main

• Perfect for robotics, especially mobile platforms: legged robots, exoskeletons, ROV, UGV, AGV, drones, wheeled platforms, and cobots.

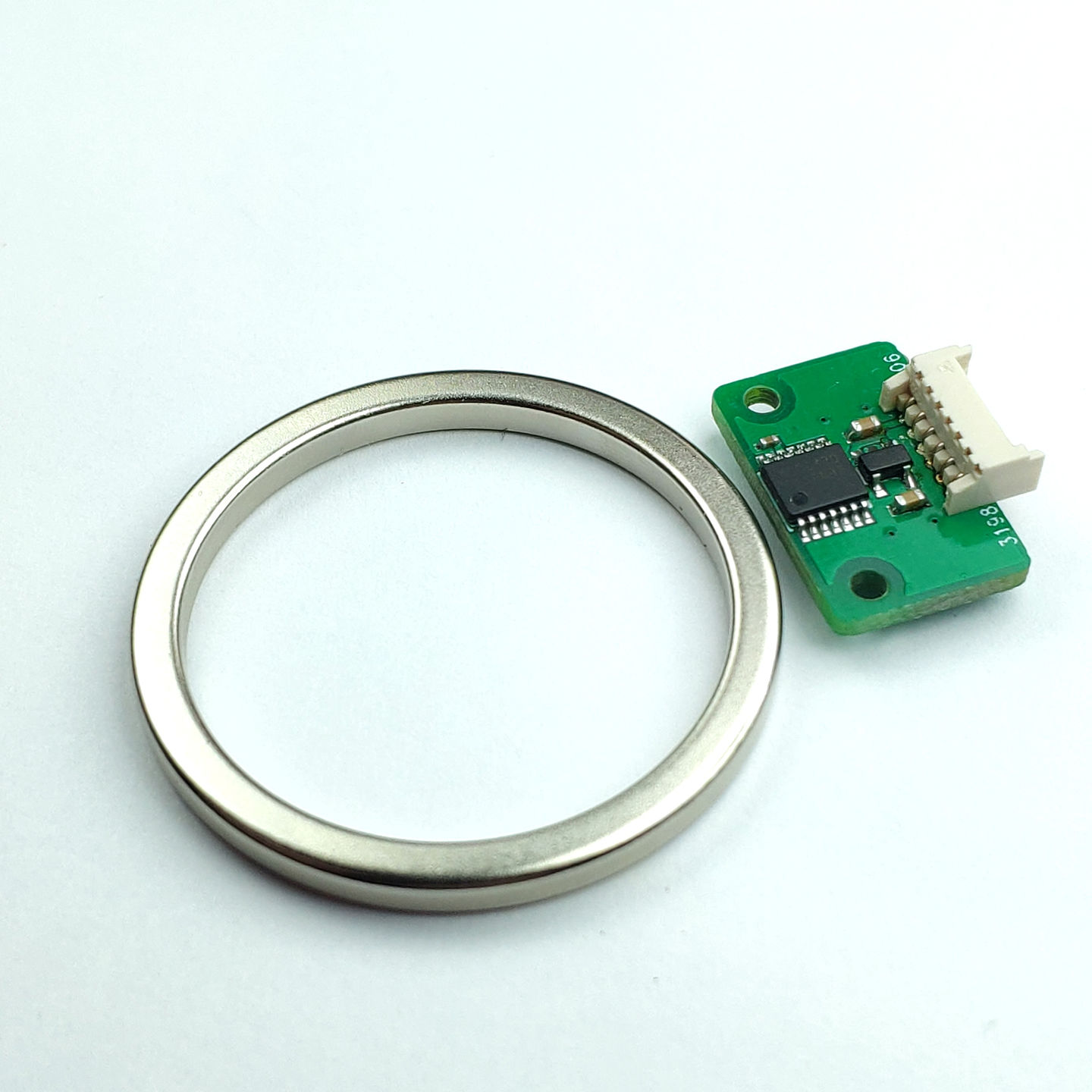

• Setup includes: Connection Cable + Encoder Magnet (on-axis or off-axis)

Additional documents:
• 3D model,
• ME absolute encoder documentation.
