The MA-p series actuators are designed without compromise, prioritizing high torque, low mass, compact size, and high backdrivability. The actuator features a brushless motor connected to a planetary reducer, controlled by an MD Series controller.

• Voltage: 12-48 VDC

• Mass:  0,17 kg

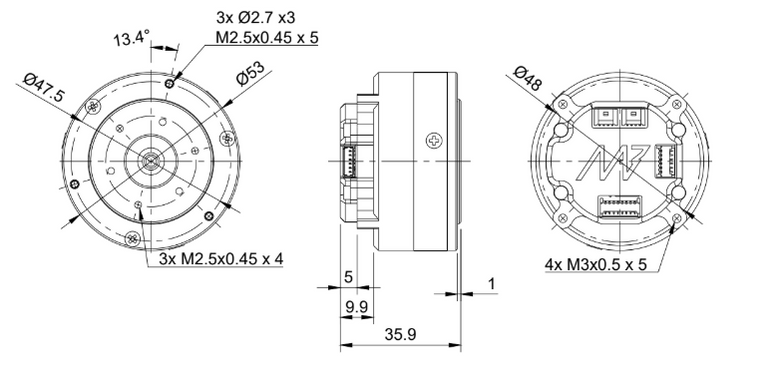

•Size: fi 53 x 35.9 mm

• Torque: 1.3/4.1  Nm (rated / peak)

• Max speed: 700 RPM (max, 48V)

• 10:1 planetary reducer, backlash: 18 arcmin (0.3°)

• 14-bit Absolute Encoder on the motor side

• Integrated temperature sensor

• Daisy chain electrical connectors

• MD series motor controller: CAN-FD or CANopen Interface

Additional documents:
• 3D model,

• MD series motor controller documentation.

Prices for larger quantities are significantly lower and depend on the chosen configuration. customization is available upon request.
