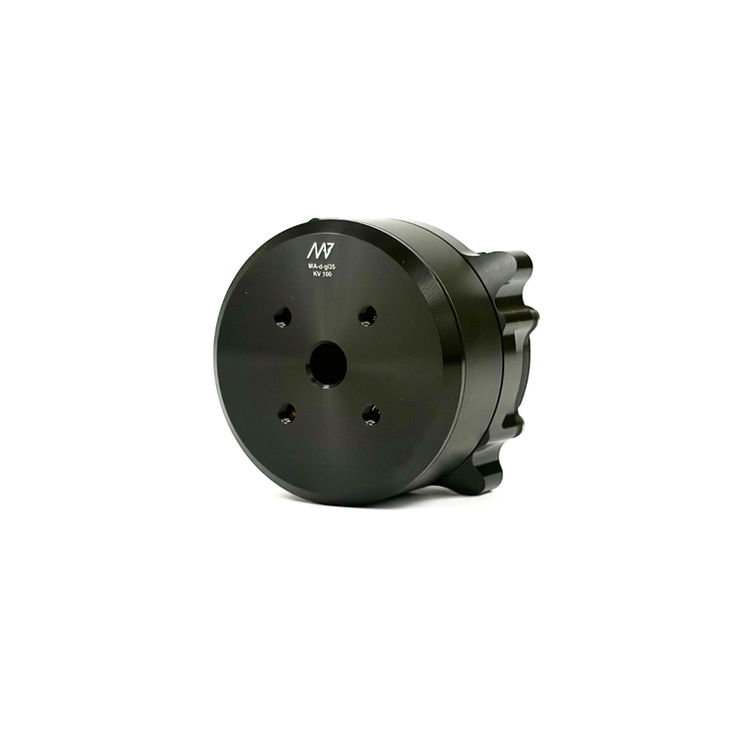

The MA-d series actuators are designed for precise control of motion and torque, resulting in higher accuracy and efficiency. Direct drive actuators are known for their smooth operation, zeroed backlash, and low maintenance requirements, making them ideal for applications where precise positioning and high performance are critical. The actuator features a brushless motor controlled by an MD Series controller with an integrated absolute encoder.

• Voltage: 12-48 VDC

• Mass: 0.109kg
• Size: fi41.8 x 31.7mm
• Torque: 0.15/0.46Nm (rated/peak)
• Speed: 900RPM (max, 16V)

• 14-bit Absolute Encoder on the motor side

• Daisy chain electrical connectors

• MD20 motor controller: CAN-FD or CANopen Interface
• Setup includes: the actuator + Connection Cable

Want to know more about direct drive actuators?
Find out more here.

Additional documents:
• 3D model,

• MD series motor controller documentation.

This example demonstrates the actuator configuration, customization is available upon request. Prices for larger quantities are significantly lower and depend on the chosen configuration.
