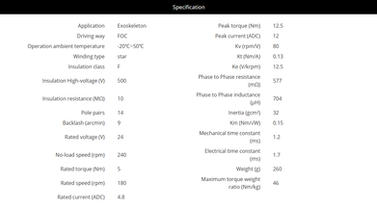

AKE60-8 CubeMars brushless BLDC motor with a planetary gear.
• Torque: 5/12.5 (rated/peak)
• Speed: 180RPM (max, 48V)
• Mass: 0.26kg
• Size: fi69x25mm• Reduction ratio: 8:1, Backlash: 9 arcmin (0.15°)
• Perfect for robotics, especially mobile platforms: legged robots, exoskeletons, ROV, UGV, AGV, drones, wheeled platforms, and cobots.
Controller options:
• Without.
• MD80 - reliable, and easy-to-use motor controller, with technical support, and documentation from MAB Robotics. Main features:
- CAN-FD up to 8 Mbps or CANopen Interface,
- Software FDCAN termination control,- Daisy chain electrical connectors,
- Auxiliary connector for external encoders/brakes/limit switch,
- Easy Configuration with CANdle and CANdle HAT: ROS / ROS2 drivers, and C++/Python libraries,
- Motion modes: position and velocity (PID + profile), impedance (PD), torque (PI),
- Onboard 14-bit Absolute Encoder.
Please, note that the controller is not integrated with the actuator, and the mechanical integration is on the user side.
Additional documents:
• 3D model,
