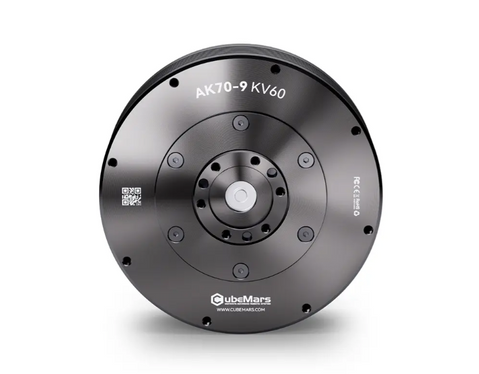

AK70-9 CubeMars brushless BLDC motor with planetary gears.


• Torque: 8.5/29.2Nm (rated/peak)
• Speed: 260RPM (max, 48V)
• Mass: 0.540kg
• Size: fi89x46mm

• Absolute encoder on the motor side (before reduction), and additional absolute encoder on the output shaft

• Reduction ratio: 9:1, Backlash: 18 arcmin (0.15°)
• Cross-roller output bearing

• Perfect for robotics, especially mobile platforms:  legged robots, exoskeletons, ROV, UGV, AGV, drones, wheeled platforms, and cobots.

• Integrated temperature sensor.



Controller options:
• CubeMars - original Chinese motor controller.
MD80 - reliable, and easy-to-use motor controller, with technical support, and documentation from MAB Robotics. Main features:
  - CAN-FD up to 8 Mbps or CANopen Interface,
  - Software FDCAN termination control,

  - Daisy chain electrical connectors,
  - Auxiliary connector for external encoders/brakes/limit switch,
  - Easy Configuration with CANdle and CANdle HAT: ROS / ROS2 drivers, and C++/Python libraries,
  - Motion modes: position and velocity (PID + profile), impedance (PD), torque (PI),
  - Onboard 14-bit Absolute Encoder.

  - Two versions available: 48VDC and 60VDC input voltage limit.



Additional documents:

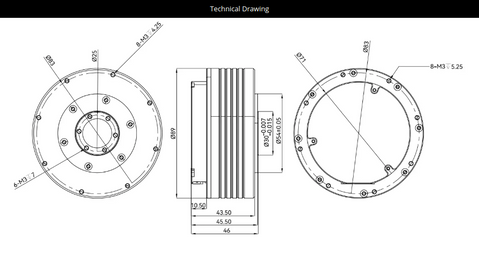

• 3D model,

• MD series motor controller documentation.

AK70-9 CubeMars

Price

489,65€
